High-precision Reducer

commercialized the Index Drive that relied on imported components in the past — thereby helping to reduce expenses, improve productivity, and promote advanced and precise processing through domestic commercialization production in the field of automation equipment in Korea. Hannz Motrol is currently focusing on acquiring further driving force in the future.

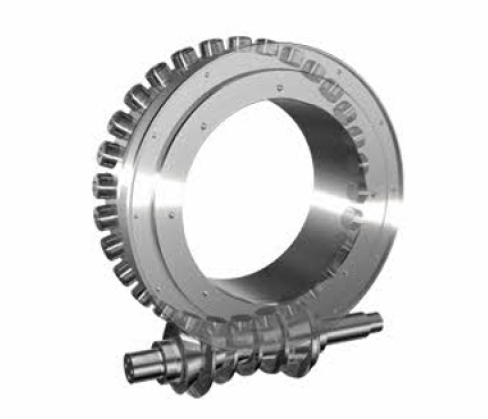

Hannz Motrol’s DynaDrive is a zero-backlash high-precision reducer based on a roller gear cam.

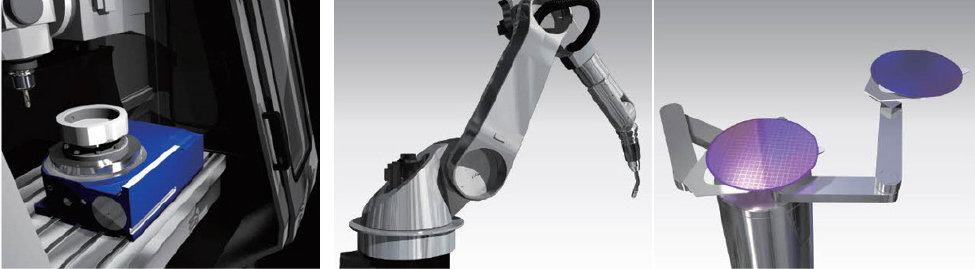

This is a zero-backlash mechanism optimized for applications requiring high rigidity and precision, such as semiconductor transport robots, additional axis of machine tools, and joints of industrial robots that are capable of input and output horizontal configuration and compact design.
Center distance of 40~450mm is available by order. Integrated 4-point direct contact bearing type can also be provided as an option.

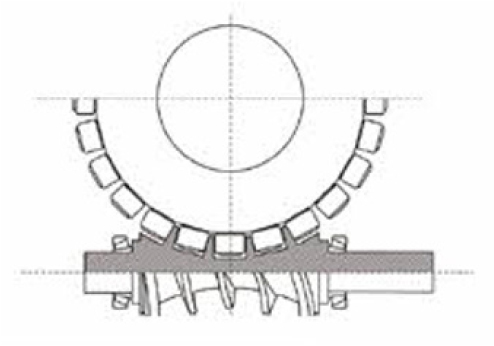

High Rigidity Zero Backlash

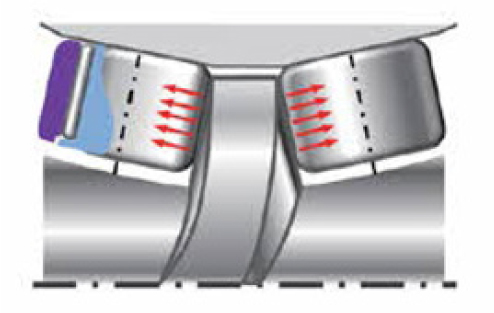

Multiple roller gears mesh simultaneously to achieve zero backlash, thereby satisfying requirements for both precision and rigidity. Preload settings can be adjusted by controlling the preload adjustment flange. DynaDrive realizes fast and stable motion.

Compact Input/Output Vertical Layout
DynaDrive features a 90-degree vertical input/output axis. It is ideal for applications requiring a low-profile, compact horizontal pivot axis design. Additionally, the hollow output shaft is highly useful when piping or wiring is required.

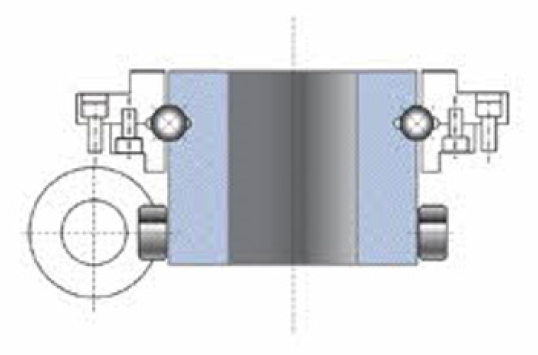

Integrated Bearings
DynaDrive employs an integrated structure of the output shaft and bearings using a proprietary design, achieving a compact size and excellent rotational precision. The preload structure can withstand both radial and axial loads simultaneously.
“Moving forward, in the face of a rapidly changing era of global competition, we will solidify our foundation as a global leader in the field of automation equipment in terms of technology, quality, and productivity. Even at this very moment, our employees are creating the best products and services, and we will continue to strive tirelessly with the pride of contributing to the development of the automation industry. We will do our utmost to become a company that is always a step further ahead of our customers,” emphasized the CEO of the company.
