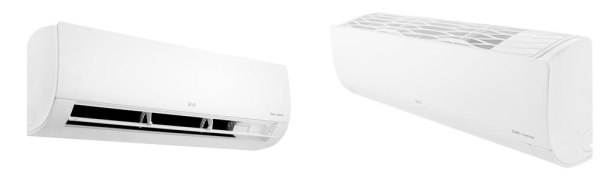

Air-Conditioning System Multi V Super 5 detects not only indoor and outdoor temperature but also humidity − beyond the simple cooling function. It distinguishes the humidity of the rainy season from the heat of the hottest season to provide a pleasant wind as well as energy-saving benefits.
Existing products stop running for a stable heating supply during winter, switching to a defrosting operation and oil recovery operation − while Multi V Super 5 minimizes such unnecessary operation to save energy and extend the heating time.
By adopting the advanced subcooler design technology, Blackfin, and T.V.I., this product enables heating in extreme cold of -25ºC, while maximizing the heating capacity in the cold temperature of -15ºC. It also uses the world’s first three-stage compression technology to improve heating efficiency, while the 5th-generation inverter compressor technology achieves overwhelming rapid cooling and heating. Whisen Smart Dual Inverter is made by using the patented technology of a smart heat exchanger for the first time in the world to improve the energy efficiency by selecting the optimum variable flow path for cooling and heating respectively, and automatically adjusting the heat exchanging area.
In addition, the world’s first five-stage receiver system maximizes energy efficiency by controlling the optimal amount of refrigerant required for cooling and heating operation in real time, and appropriately adjusting the amount of refrigerant according to the system environment and load conditions.
The LG Electronics Air Solution Business Unit is a total HVAC and energy- solution provider. The company offers a broad portfolio of air conditioner products that are compatible with any building anywhere, including compact residences, towering skyscrapers, massive factories, and giant concert halls. As a true total HVAC and energy solution provider, LG also supplies even the largest buildings and industrial facilities with central air conditioning systems such as chillers, and at the same time offers efficient control solutions. The history of the business unit goes back to 1968 when LG (then called GoldStar) rolled out Korea’s first residential air conditioner. | Blog Magazine of korean-machinery, brands and Goods

Absorption Chiller & Heaters High-Efficiency Gas Fired Absorption Chiller produced by has acquired the high-efficiency certification for all models COP1.3 or higher. Featuring compact size and high-efficiency technology, it is exported to Pakistan, Iran, and Egypt.
The Single Effect Hot Water Driven Absorption Chiller can utilize the heat source hot water temperature up to 95 degrees, while the high-efficiency performance of COP0.74 makes it possible to reduce energy and operation cost. Also, these high-efficiency steam chillers are sold to plants and hospitals.
The Hybrid Absorption Chiller & Heater simultaneously drives hot water and gas with the heat source. It has the advantage of driving solar hot water or district heating hot water and city gas at the same time. The Triple Effect Absorption Chiller & Heater is the future product of Gas Fired Direct Fired Absorption, achieving the world’s highest efficiency COP of 1.65 and developed the world’s first reverse-parallel flow cycle.
The Hot Water Driven Adsorption Chiller is the first hot water driven product in Korea that uses hot water of up to 70 degrees, which adopts high-efficiency zeolite adsorbent and achieves COP0.5.

SAMJUNG TECH Co., Ltd. has grown into a leading company in the field of refrigeration and air conditioning since having been separated from Samsung Heavy Industries Co., Ltd. in 1999. The company is leading the domestic high-efficiency absorption market by introducing High-Efficiency Gas Fired Direct Fired Absorption, High-Efficiency Double Effect Hot Water Driven Absorption, Steamed Absorption Chiller and Solar Hybrid Absorption Chiller through constant research and development to produce high-end products.
SAMJUNG TECH has also developed and launched Korea’s first triple-effect absorption chiller and hot water driven adsorption chiller through its accumulated technology development expertise and innovative research over the last 30 years. This research was supported by the Korea Institue of Energy Technology Evaluation and Planning (KETEP) and was funded by the Ministry of Trade, Industry and Energy (MOTIE). | Blog Magazine of korean-machinery, brands and Goods

Air-Conditioners Wind-Free™ system provides users with the ideal conditions by maintaining the desired room temperature using Wind-Free™ Cooling to gently disperse cold air through thousands of micro air holes. First, the system lowers the room temperature in Fast Cooling Mode and then automatically switches to the Wind-Free™ Cooling Mode once the desired temperature is reached. The Wind-Free™ system has the added ability to connect to Samsung’s Smart Home App. Controlling your comfort has thus never been easier.
The Wind-Free™ unit delivers an air current that is under 0.15 m/s while in Wind-Free™ mode. Air velocity that is below 0.15 m/s is considered “still air” as defined by ASHRAE 55-2013 (American Society of Heating, Refrigerating, and Air- Conditioning Engineers).

Samsung’s circular air wave consistently controls the temperature of the room by providing an even distribution of air across a full 360-degree range. Bladeless flow control allows for a 39 percent increase in coverage area by delivering 100 percent of air volume, compared to traditional four-way cassette units, which can lose up to 25 percent of air volume.
Samsung’s System Air Conditioning units like the 360 Cassette rely on outdoor units to function. But conventional outdoor units are not without their limitations, as many of them take up large amounts of space.
Samsung Electronics has been contributing to and leading the digital revolution by offering its products of innovative technology, original design, convenience and high value, thus not only satisfying current demands of the customers, but also presenting new products that can predict future market demand and lead the global digital market.
The air conditioning sector of Samsung Electronics begun its multilateral business with home air conditioners in 1974 and expanded its boundaries to include EHP products, GHP (Gas engine-driven Heat Pumps), and ERV (Energy Recovery Ventilators). Samsung Electronics is still evolving into a company that offers total air conditioning solutions, by developing cutting-edge digital control solutions to off er customers the best air conditioning services with its wide range of products. | Blog Magazine of korean-machinery, brands and Goods

Air Purifier Inverter Hybrid Boiler-Solar System produced by CLK Corporation is an eco-friendly system that supplies cooling, heating, and hot water through the inverter boiler using electricity saved by household solar power. By integrating solar power control with the new ultra-low-power inverter control technology, this product has made possible a zero energy house that dramatically reduces electricity bill and CO2 emissions.
The air purifier Air ONE has a capacity of 8.5 kW, allowing the temperature of the thermal storage tank at 55ºC for heating, 65ºC for hot water and 7 to 25ºC for cooling. In addition, it can be used in connection with existing gas, kerosene, or electric boilers, which enables a flexible installation and operation environment.
In addition, the weight of the outdoor unit and the indoor unit were also lightened to 65kg and 55kg respectively, thus reducing the burden on the installation site. The outdoor unit is equipped with DC inverter control technology and twin rotary compressor − whereas the indoor unit uses a low-noise pump and the library noise level is 41dB (indoor unit). ) Low noise operation is thus possible. Using high-performance H13 grade HEPA filter and nanoe ™ technology, AIR ONE effectively removes fine dust and harmful substances. The 6-step safety air cleaner system using the top-of-the-line model for the width of 18-pyeong is equipped with a pre-filter, a hepa triple filter, a deodorization filter and nanoe ™ technology to remove 99.9% of fine dust 0.3 μm (micrometer), thus effectively removing harmful gases.
In particular, nanoe ™ is a newly introduced technology for premium antibacterial and deodorization enhancement. It is made safe with particulate ions contained in water and effectively inhibits viral bacteria and gas in the air.
CLK Corporation is the only air conditioning company in Korea that has a full product range for household, commercial and industrial uses. The company has been ranked as a manufacturer of air conditioners in the Korean industry, currently aiming to become a global air-conditioning solution company that will lead the domestic and overseas markets in the building intelligent solution (BIS) business that effectively controls the air conditioning equipment and systems of buildings. | Blog Magazine of korean-machinery, brands and Goods

Fan Coil Unit & Ventilation Unit ceiling cassette slim type fan coil units manufactured by Shinwoo Air Conditioning Co., Ltd. can be installed in spaces with low ceilings such as studios and efficiency apartments. It is effective in energy-saving thanks to its low power consumption by using the BLDC motor. Without requiring installation of an access hole separately on the ceiling by adopting the integrated interior panel, this product enables a basic inspection without damaging the interior.
The EPP 2- and 4-directional ceiling cassette is made of expanded poly-propylene (EPP), an eco-friendly material. It is lightweight and has excellent chemical resistance and corrosion resistance, minimizing the corrosion of products in waterfront areas.
In addition, this product completely prevents external condensation, thus preventing ceiling contamination and minimizing loss of heat energy, thanks to the high thermal insulation performance of EPP.
The low-noise in-ceiling type fan coil units have been developed through research and development for one year to solve issues such as noise as well as indoor air quality. It is optimized for noise-sensitive spaces such as hotel rooms. All its products have the allowable NC value of less than 35 in the Noise Criterion Curve and even down to NC 30 when it comes to smaller models.
Established in 1997, Shinwoo Air Conditioning Co., Ltd. has been engaged in the research, development and production of fan coil units and ventilation units for 26 years. The company has acquired industrial property rights including 27 patents and 14 designs, and holds a number of national certifications such as ISO9001, 14001, KS, CE, INNOBIZ and G-PASS. The company has also received the Industrial Service Medal, the certificate of export from the Ministry of Trade, Industry and Energy Republic of Korea, and the Presidential Citation.
Shinwoo Air Conditioning has been operating a subsidiary in Thailand since 2016 in order to enhance its competitiveness in overseas markets and is seeking to develop it as a major base in the Southeast Asian market in the future. | Blog Magazine of korean-machinery, brands and Goods

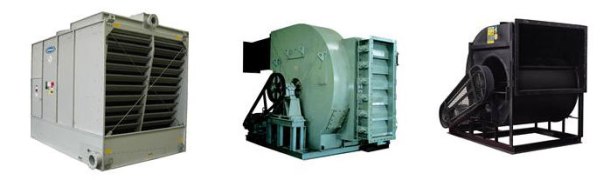

Cooling Tower & Blower Cooling Tower is made by adopting cutting-edge advanced technology through its technological alliance with Baltimore Aircoil Company, Inc., the world’s leading cooling equipment maker. The main features of this product include high quality and heat performance, guaranteed by acquiring international certifications such as CTI, KARSE, and AMCA, high corrosion resistance alloyed steel plate structural material, quiet operation, optimal loading and installation of minimum height design, precision capacity control, and energy-saving options.
Since the Baltimore Cooling Tower has a wide variety of product ranges and operation efficiency in any operating environment, it can be used for various purposes such as industrial uses, refrigeration, and air conditioning. Offering a variety of methods and characteristics of installation, maintenance, and operation, it is highly economical by minimizing costs.
In particular, the newly developed low-modular, combined-type cooling tower can be economically installed and operated in high-density areas with limited floor height, realizing customer satisfaction.
Chicago Blower boasts stable operating performance and discharging airflow, significantly reducing energy consumption by using new technologies to redesign major parts and lighten the rotating body.

The streamlined intake and wheel cone help smooth air flow, and the outer diameter of the wheel cone is formed with ribs to reduce the turning moment and increase the efficiency even further. In addition, this high-efficiency blower with excellent energy saving and power saving effect has been certified by AMCA SEAL certification and membership.
Developed by using technology related to the national development project, Chicago Blower consists of two related patents. After passing the AMCA performance test, it has become Korea’s first large-sized special axial blower to acquire certification. Designed in various sizes (ø2100 ~ 3,150mm) with maximum static pressure of 5,600Pa (570mmAq) and maximum air flow rate of 550m2 / s, Chicago Blower offers customers a wide selection range.
Bumyang Air-Conditioning Co., Ltd. specializes in the production of various air conditioners and freezers. Established in 1963, as Korea’s first air conditioner manufacturer it has acquired KOLAS, AMCA, CTI, KARSE, KS, AS, EM, CE, ISO9001, and ISO14001 certifications. | Blog Magazine of korean-machinery, brands and Goods

Centrifugal Water Chiller is an eco-friendly ultra-high efficiency turbo chiller developed in 2019 to respond to strengthening of refrigerant regulation of CFC, HCFC and HFC series worldwide due to ozone depletion and global warming. The R-1233zd, an HFO refrigerant, is a highly environmentally friendly with a global warming potential (GWP) of about 7, which is lower than R-134a with GWP value of 1300. In particular, the impeller and diffuser are optimally designed through its 3-dimensional shape design and structural analysis.
In addition, the efficiency is maximized by adopting optimal refrigerant level control by saving energy by 8 to 10% through high-efficiency 2-stage compression method applying a high-efficiency refrigerant cycle and economizer of the 2-stage expansion type.
The oil groove for the impeller and the efficiency of the compressor have been improved by applying the optimal number of revolutions, and by adopting the ultra-precise aluminum alloy impeller with ideal three-dimensional geometry in fluid mechanics, which was examined through the structure and flow analysis. It has also adopted an ideal flow structure through analysis of CFD flow for the flow path combined with each component forming the refrigerant flow path such as impeller, diffuser, diswaller, and casing.
Equipped with the two-stage compression method using Economizer, as much as 6 to 8% energy is saved compared to the 1st cycle. In addition, high-efficiency closed cycle shroud impeller has been applied to realize a high-efficiency cycle and system optimization by applying the sub-cooling system and precise control of expansion valve in consideration of partial load characteristics.
By adopting the energy-saving type, the latest high-performance heat pipes, and motors, this high-efficiency water chiller can reduce operating costs by about 30% and the standard efficiency type can save about 20%, compared with the conventional R-123 turbo chiller.
Through efficient interlocking control with the inlet guide vane, movable diffuser, and hot gas bypass, it can be operated continuously from 10% to 100%, thus prolonging the life of the chiller. Century is engaged in a wide range of business fields and technologies such as freezers, air conditioners, ships and industrial machinery, air conditioners, and nuclear power plants. Based on its specialized technology and accumulated know-how, the company seeks to provide environmentally friendly products. | Blog Magazine of korean-machinery, brands and Goods

Ventilation Units & Fan Coil Units[INQ. NO. 1903M14] The ventilation units manufactured by AP Co., Ltd. are equipped with H13 class 40T HEPA filters, the first of its kind in Korea, which filter 99.97% of 0.3μm ultrafine dust (based on the filter-cloth test report). These highly efficient products consist of high-efficiency apartment standard type, high-efficiency apartment slim type, and high-efficiency apartment injection type − and general products including large-capacity type, bypass standard type, counterflow type, and air supply/exhaust units.
AP’s 4-way ceiling cassette fan coil unit received performance certification in 2018, for reducing power consumption by up to 50% compared to products from other Korean manufacturers. Fan coil units are central cooling and heating machines that use cold and hot water as refrigerant, hence, typically requiring low power consumption. AP has a various range of fan coil units such as floor standing type, ceiling type, and ceiling cassette type. Consumers can choose different fan coil units depending on installation location. AP has introduced new range of products in 2019, which include a filter cartridge unit. It can be applied to fan coil units to further functionality of fan coil units. In other words, fan coil units can now be used as an air purifier as well as heating and cooling machine.
AP launched air purifier after two years of research and development. In October 2018, AP introduced different types and sizes of air purifier: air purifier and air purifier with ventilation system. The air purifier equipped with ventilation system is highly noticeable as it is also capable of removing carbon dioxide, which could not be done by existing air purifiers. Hence, this model is especially useful in places like schools and hospitals where there are many people. Consumers can now choose this high-tech system through AP. Founded in 2008, AP Co. Ltd. is labeled as the best in ERV and FCU markets. The company has acquired a number of international and domestic certificates and patents. AP has been recognized for its high energy efficiency through the certification of highly efficient energy equipment and has developed and produced nationally authorized ventilation units with various advanced technologies. | Blog Magazine of korean-machinery, brands and Goods

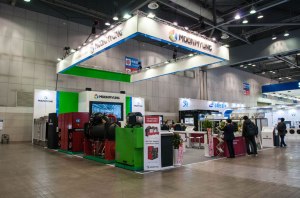

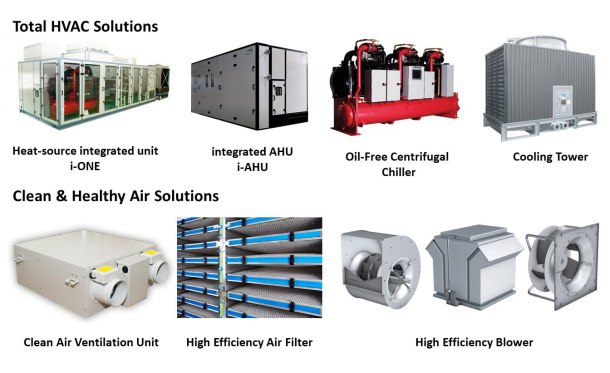

Air Conditioning System is a heat-source integrated unit produced by MoonMyung Ace Co., Ltd. The oil-free magnetic levitated centrifugal chiller which is applied to this product as heat-source equipment is 90% higher in efficiency than that of conventional screw chillers, yet reduces noise level and vibration to below 72dB; and no oil is required due to the magnetic levitated bearing. As starting current is only 2A, the energy saving is significant.
In addition, ultra-fine particles − the hottest issue in Korea − is resolved by filters applied to i-ONE, which can keep indoor air quality (IAQ) below PM 2.5 (ISO 16890). Besides, as i-ONE is the unit in which heat source and air conditioning equipment is integrated, it can drastically reduce piping equipment and other equipment, thus reducing saves more than 50% of pump power compared to existing systems.
The cooling tower applied to i-ONE together with the chiller has a plume abatement function without additional coil or equipment and high efficiency and low noise performance. In particular, it consists of three tower types based on noise level − low noise type, ultra-low noise type, and super ultra-low noise type. As for the super ultra-low noise type, no additional silencer is required and an innovative fan satisfying 45dB at 20m is applied.
Featuring a high-end air handling unit, clean air solution as well as high efficiency, low noise and low vibration, i-ONE is capable of measuring indoor ultra-fine particles, fine particles, CO2 and VOC through its Smart Control Kit, while it is properly under control in order to provide optimized air conditioning. In addition, i-ONE can deal with prolonged construction period issues caused by construction workforce-related problems.
Patented in the USA, Germany, and Japan as well as Korea, i-ONE provides solutions to all the current air-related issues in the domestic and global markets.
MoonMyung Ace Co., Ltd. has been providing cutting-edge high-quality products, various solutions, and services based on plenty of experience over half a century and innovative technology while leading the Korean HVAC industry since its founding in 1696. Moonmyung Ace seeks to develop the HVAC industry through innovative total HVAC solutions. | Blog Magazine of korean-machinery, brands and Goods

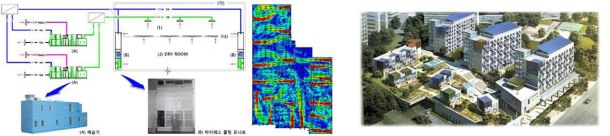

Dry Room & Geothermal System dry room system manufactured by Shinsung Engineering Co., Ltd. is equipped with the world’s best dehumidification rotor produced by Seibu Giken Co., Ltd. in Japan to provide ultra-low-humidity (DP-70 degree) technology. Using the purge process to recover regenerated heat in order to reduce the electric capacity of the heater by 20%, it drastically lowers the operation cost of the drier system.
In addition, by analyzing the air flow and temperature and humidity distribution inside the dryer room, the air flow was optimized to improve the efficiency by 10% and the fan motor consumption power by 10%. This system is applicable to various applications such as secondary batteries, pharmaceutical companies, semiconductors, shipbuilding, automobiles, chemicals, and museums; and the market is expanding rapidly. It is reflected in system design through close contact with nonstandard specifications requested by customers and Shinsung established a business process that can incorporate advanced technology into equipment.
Shinsung Engineering’s joint residential geothermal system integrates the cooling, heating, hot water supply and ventilation of apartment houses through geothermal heat pumps and maximizes energy savings through the provision of a unified HVAC system. The company’s geothermal heat pump is applied to the first zero-energy housing demonstration complex in Korea, and it is used steadily by supplying the heat source of cold, heating, hot water supply and ventilation of households.
This product allows users to obtain excellent building efficiency rating through the application of a heat pump using geothermal heat of new and renewable energy, thus reducing various tax benefits and construction costs. The cooling, heating and ventilation facilities can be configured as one home network, so that individual control of each room can be easily performed, thereby maximizing convenience and thermal comfort. In addition, it is possible to operate the unified air-quality management system through the introduction of central or individual ventilation systems for fine dust reduction.

Shinsung Engineering Co., Ltd. is a comprehensive refrigeration and air conditioning company. Established in 1977, Shinsung Engineering has developed high-efficiency, environment-friendly products based on continuous research and technology. As a result, the company received the Prime Minister’s Commendation Award and the Presidential Commendation, acquired Q-Mark for all its air conditioning equipment, as well as acquiring the technological certifications in North America and the European Union. From design to construction, Shinsung Engineering provides customers with high-efficiency, eco-friendly total solutions in all areas of refrigeration and air conditioning. | Blog Magazine of korean-machinery, brands and Goods
