Shipbuilding and marine engineering solutions[INQ. NO. 1701M28] Samwoo MCP is a professional manufacturer of components for the shipbuilding and marine engineering industries, which applies to LNG carriers, offshore plants, generating units, and marine engine and construction equipment. Now the company is firmly established as a reliable partner for global leading companies all over the world as they recognize its value and capabilities.
Samwoo MCP’s cargo containment system for membrane is based on a very thin primary barrier (0.7 to 1.2 mm thick) which is supported through the insulation. The company’s containment system for membrane must always be provided with a secondary barrier to ensure the integrity of the total system in the event of primary barrier leakage. The membrane is designed in such a way that thermal expansion or contraction is compensated without over-stressing the membrane itself.

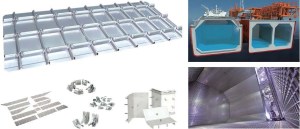

201701m_page_36_06The MarkIII membrane system from the company is a cryogenic layer of the LNGC CCS and composed of metallic primary & secondary membrane and two insulations for supporting both membranes. Membrane is made of corrugated stainless steel to absorb the thermal contraction when the tank is cooled down. Membrane contacts with LNG directly and helps maintain the inside of the LNG tank below -163°C. Samwoo R&D team has executed R&D activities like developing core technology, increasing production efficiency in the relevant business area based on accumulated skill and know-how with excellent personnel to survive in this age of unlimited competition. | Blog Magazine of korean-machinery, brands and Goods
