Wine Bottle Corker

https://korean-machinery.com///inquiry[INQ. NO. 1807M02] This product is a machine that inserts (sealing) the cork (stopper) on the top of a wine bottle, it has a very simple structure. It does not use electricity nor does it apply a pneumatic system.

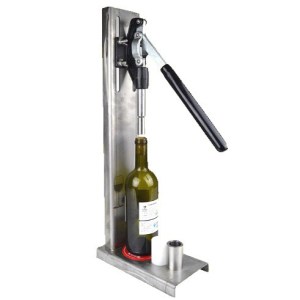

Put the bottle on the fixing frame placed at the bottom of the machine as shown in the picture above, adjust the height and lower the lever at the top downward and then, the cork will be automatically inserted into the bottle, then, the wine bottle is sealed.
The cork holders made of stainless steel have two sizes and the cork in the holder is injected into the bottle without getting broken.
Bottle height should be 40 cm or less and cork holders are available in 2 sizes – (a) 21mm in diameter and 38mm in height / (b) 22mm in diameter and 44mm in height.
In case the size of the cork injection part of the wine bottle is different, the corker can be manufactured with PE material as special production upon request. The size of the machine is 25cm * 15cm * 65cm and its weight is about 7kg. The operation principle is very simple and about 6 to 10 bottles are corked per minute.
