Cooling Towers

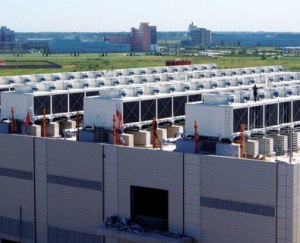

https://korean-machinery.com///inquiryKIMCO’s EX/MEX series cooling tower is a cross-flow cooling tower. This is an innovated system that covers a large capacity in compact type. The existing standard cross-flow cooling tower system has the following disadvantages: the dead area where the cooling water passing through the fill material is deflected to one side. It is due to the speed of the air being sucked and not being cooled.
However, the high-efficiency fill material of the EX/MEX series of the cooling tower system is patented through the extraordinary technology, and does not have any disadvantages.
The usage of a PVC cellular type drift eliminator and wide mounting space reduces drift to less than 0.002%. Additionally, it is the least drift type among the cooling tower systems with having low probability of legionella propagation.
To maximize heat exchange efficiency, a separate distribution device is installed on the top of the fill material. Designed as a compact cooling tower, it features light weight of the high-performance cooling tower. And it has maximum capacity of 1200 CRT per cell.
As a double cross-flow type cooling tower, this allows maintenance and repair during the operation. The access door is designed for easy access, and is built efficiently for inspecting and cleaning. Also, immediate repair is possible if defects occur on the driving side.
Ultraviolet protection coating is applied to the fill material to minimize the hardening phenomenon. Therefore, it does not interfere with the related system (main equipment, pump, piping) due to breakage.
Also, the CKL model does not cause contamination of cooling water through the absence of direct contact with external air.
Coolant circulation coils of copper or stainless steel free the cooling tower from oxidation or other corrosion. Since the coils are installed on both sides of the fan, plume abatement operation is possible under the low plume abatement or low-load temperature driving, and when the coil’s sprinkling water is not on one side. The optimal arrangement of fan, filler, and coil eliminates the air flow’s dead area, and improves its efficiency.
CKL series is an enclosed cooling tower system for when conditions are sensitive for contamination or if there is a need for continuous operation throughout the year such as: semiconductor equipment, computer rooms, emergency power plants, etc. All of CKL’s enclosed models are the cooling tower systems that are certified by STD-201 of CTI.

korean-machinery.com | Blog Magazine of korean-machinery, brands and Goods

Cooling Towers

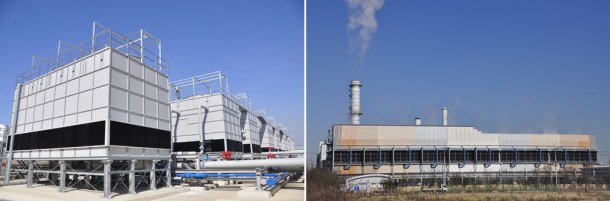

https://korean-machinery.com///inquiryKIMCO(Kyung In Machinery Company) was incorporated in 1975 to start manufacturing of cooling towers. KIMCO provides total cooling tower services from development, to production and installation with its independent technology. Now KIMCO mainly presents two representative cooling towers – Npkl cooling tower and GX with CHAPA system cooling tower – for its overseas advancement.



nPKL Cooling Tower

The nPKL cooling tower from the company is a product certified as an NEP (New Excellent Product), representing the nation’s national level certification on new products. And it is also proven as an excellent product for procurement. This product is a cross-flow type of plume abatement cooling tower with a new concept of air heater that uses its own source of heat without depending on outside heating sources, thus requiring no additional energy.



GX with CHAPA System Cooling Tower

The company’s GX counterflow-type cooling tower is a product featuring a new concept of CHAPA system (Cooling & Heat Adapted Plume Abatement System). The CHAPA system adopts a new concept under which heating was done after dehydration, an idea created from the washer’s three main processes – washing, dehydration, and drying. This cooling tower is a CTI-certified product.
KIMCO established itself as a strong customer-oriented organization with decades of experience on site as well as R&D, designing, and on-site engineering. Also, it designs programs equipped with 3D-CAD and simulation, while its cutting-edge information network provides optimized engineering to satisfy customers’ needs. KIMCO manufactures, tests, and inspects FRP injection manufacturing equipment, the largest automatic molding machine, wind tunnel testing equipment, and cooling tower performance-testing equipment. KIMCO actively invests in facilities for automated and fast manufacturing process.
In particular, KIMCO has been focusing on research and development based on cooling tower research institutions having more than 40 patents. Its unique technologies are recognized in the industry and various entities are visiting from all over the world to learn about the company’s know-how and technology.
Keeping in mind the fact that a comfortable lifestyle and clean life are two invaluable goals that everyone strongly dreams of and seeks to achieve, KIMCO has been leading the cooling tower market with unique technology. Now, expanding beyond the Korean market, KIMCO aims to become a global leader in its field.
