https://korean-machinery.com///inquiry[INQ. NO. 2005M06] TaeSung Co. is a leading manufacturer of exploration drilling equipment for Korea and the surrounding region since 1980. Taesung is specialized in the production of high-quality impregnated diamond core bits, reaming shells, core barrels, casing, drill rods, and more.
Taesung’s Core Barrels are made of raw materials of best quality appropriate for drilling, so they have excellent lifespan and quality and are currently being exported to various countries such as Kazakhstan, Mongolia, Uzbekistan, etc.

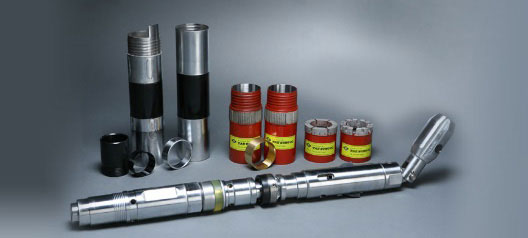

Now there are many types of these barrels produced by the company – single tube core barrels, double tube core barrels, triple tube core barrels, and wire line core barrels.

The single tube core barrels are generally used to increase the collection rate of cores on an even ground. They cannot be used at the ground that can be easily collapsed or eroded by the circulation water.
The double tube core barrels are made of double tubes (outer tube, inner tube), and circulation water passes through the gap between the tubes and is not touched by the collected cores. They are not suitable to be used for the geological strata where core collection is difficult due to uneven strata with many cracks, coal beds, and soft layers. Also, they play a role of increasing the core collection rate.
The triple tube core barrels have almost the same structure with double tube core barrels, but tubes for the core case are built inside the inner tube.
The inner tube can be easily removed from a core case tube along with the cores taken into the inner tube.

It is a product that is made to collect the fresh cores without disruptions from the weak ground or broken layers where core collection is difficult with normal double core barrels.

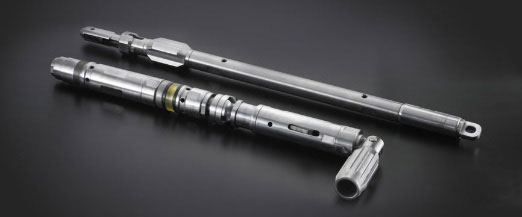

The wire line core barrels are used to hoist the rods during the drilling and core collection works by the bits of Core barrels or at the time of bit changing.
The greater the depth of the hoisting works, the more becomes the number of the rods and the weight of the rods as well as the cost, time, and labor of works. In order to solve these problems, wire line core barrels have an inner tube that is fitted inside the outer tube, and hoist the inner tube onto the ground within the hole by use of wire rope. If you use this core barrel, the number of hoistings of the rods is reduced, and accordingly this is the most reasonable core barrel especially for the drilling of cores from deep layer.
As a long-lasting No.1 supplier in Korea over the past 40 years and a preferred supplier to many other countries, Tae Sung is committed to supplying its clients with only the best-quality products.

korean-machinery.com | Blog Magazine of korean-machinery, brands and Goods

Manufacturing impregnated diamond core bit, reaming shells, core barrels, casing and drill rod

https://korean-machinery.com///inquiry Taesung is a professional manufacturing impregnated diamond core bit, reaming shells, core barrels, casing and drill rod company in Korea and has been the best for more than 36 years since its founding in 1980.

Korea has a very long geological history, so its rock is usually very hard. Thus, its technology has been adjusted to handling these kinds of hard rocks. Taesung has a superior quality on hard rocks and ultra-hard rocks.

Taesung is the leading company in the domestic market.

It is the number 1 exploration drilling accessories manufacturing company. It can produce bit and reaming shells of any size and can meet any of its customers’ standards. Also, it produces drill rods, casing pipe and core barrels. In case of its impregnated diamond core bits, the penetration rate is very fast compared to other manufacturers.

Major Products Designed to Bore the Strongest Bedrocks in the world

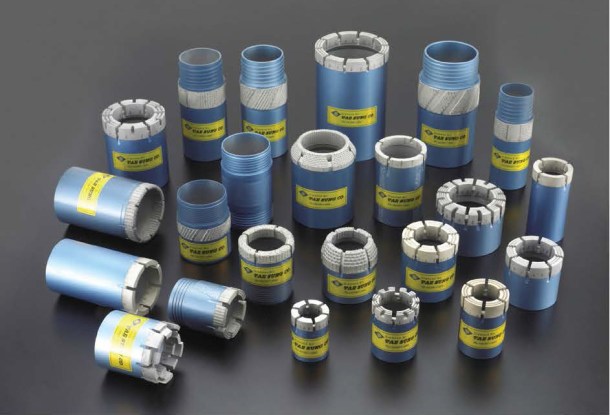

Impregnated diamond core bits, mounted at the tip of core barrels for direct contacting and boring of bedrocks, play the most important role among excavation parts. As Korea’s bedrocks are the strongest in the world, geological survey companies in Korea have incessantly requested impregnated core bits that are suitable for such excavation work.
201610mm_page_057_07
As its impregnated core bits enable proper excavation of hard bedrocks at a high speed, they are optimized for geotechnical drilling, which requires high drilling rate. Its impregnated core bits are recognized by overseas buyers as world-class and top quality products. These products are now being exported to countries like Singapore, Morocco and France.

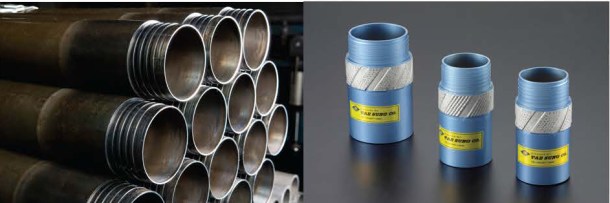

Taesung’s diamond reaming shells are in great demand as they have excellent quality, stability and abrasion resistance. This is because they are based on high-quality materials such as natural diamond, metal powder and shanks. By overcoming the low-price tactics of overseas competitors, its high-quality diamond reaming shells are leading the market.
201610mm_page_057_03
Taesung’s core barrels, which are the most complex equipment as they are comprised with more than 30 components, provide outstanding compatibility because they are manufactured in conformity with the international standards. Accordingly, they are favored worldwide as they can be utilized in any country. A core barrel is typically comprised of outer tubes, inner tubes, split tubes, a head assembly and an overshot.
