Turbo Blower

https://korean-machinery.com///inquiry

[INQ. NO. 2606M23] NS Co., Ltd. is a company that has achieved significant results across various fields, including industrial equipment, aerospace components, hydrogen energy, and special vessels, since its establishment in 2000 under the name Neuros. The company then changed its name to NS last year and has been operating under this name since then.
The product NS focused on showcasing in the recent domestic exhibition was the Turbo Blower, which is suitable for applications such as wastewater treatment. NS explains that this equipment, which combines a high-efficiency impeller, air bearings, and a Permanent Magnet Synchronous Motor (PMSM) optimized for high-speed operation, features high efficiency, eco-friendliness, and user-friendliness.

In particular, NS cites ‘air bearings’ as a key strength of its turbo blowers. Air bearings are non-contact bearings that utilize the fluid dynamic pressure automatically generated between a high-speed rotating disc and a foil-shaped structure within a viscous gas, thus eliminating the need for separate lubricants.
During the 2024 Paris Olympics, there were many criticisms regarding the water quality of the River Seine, and so 10 of NS’s turbo blowers were deployed to address this issue. The company’s turbo blowers are used not only to purify water using compressed air but also in the cooling process during semiconductor-wafer manufacturing.
Regarding the application of air-bearing technology, a company spokesperson explained, “Since no wear occurs during rotation, the air bearings can be operated semi-permanently, and 100% lubrication-free operation is achievable. Because they only split and compress air from the atmosphere, they can be considered free from environmental concerns.”
Meanwhile, NS is also implementing advanced predictive maintenance through its smart blower solution, NSync. This is an intelligent system that goes beyond the limits of conventional blowers to optimize energy efficiency and enable preventive maintenance through IoT-based real-time monitoring and data analysis functions. It is designed to provide an integrated screen that allows users to check the operating status at a glance and enables immediate response in the event of an anomaly.




korean-machinery.com | Blog Magazine of korean-machinery, brands and Goods

Industrial Turbo Blower

https://korean-machinery.com///inquiry

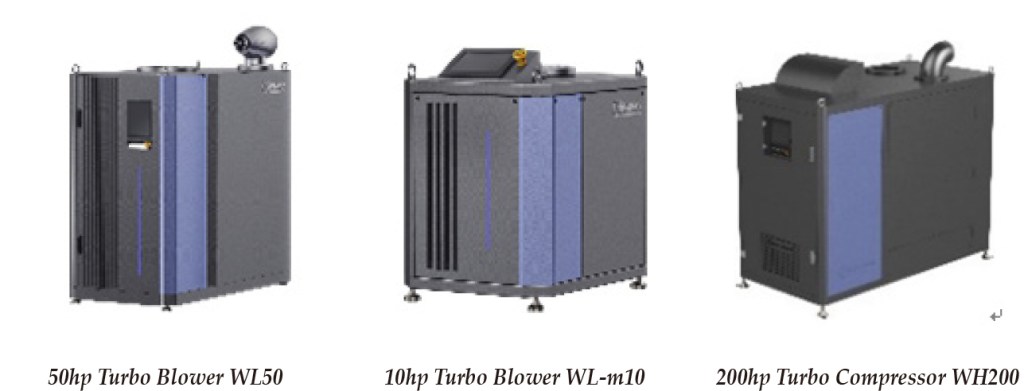

[INQ. NO. 2405M05] Turbowin Co., Ltd. was established in 2015 with a group of engineers with over 20 years of experience in turbo-technology development. The company has since then been working to overcome the challenges of providing reliable and safe air solutions.
Turbowin started the business of manufacturing small turbo blowers and developed its business into manufacturing high-capacity turbo blowers and turbo compressors. Now, by expanding its business to gas turbo compressors and vacuum turbo compressors, it is growing into the world’s best global turbo machine brand with a competitive product lineup.

Turbowin’s turbo blower, one of the zero-oil turbo blowers with the highest efficiency of up to 57.5%, is available in the most diverse product range from 3 to 1,800HP, to meet customer needs, and has the longest and most reliable durability – thereby proving to be a comprehensive solution that cannot be matched by others.

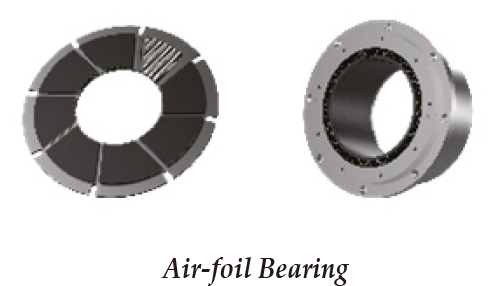

World’s only turbo compressor based on an air-foil bearing
In addition, the world’s only turbo compressor based on an air-foil bearing was developed with Turbowin’s own technology, and can be supplied from 2bar to 10bar.
Through accumulated technology, the patented dual cooling system lowers the internal temperature of the product by more than 10 degrees compared to other products, greatly enhancing the performance and durability of the product.
With the world’s only 100% zero-oil turbo compressor, users can experience a new world of pure air and maximum energy savings.



korean-machinery.com | Blog Magazine of korean-machinery, brands and Goods

Turbo Blower

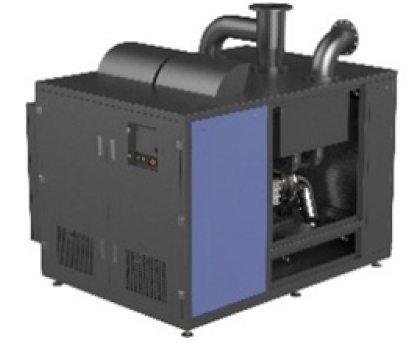

https://korean-machinery.com///inquiryAs a hard centrifugal type compressed-air production system with an impeller directly connected to a high-speed motor, NAMWON TURBOONE’s turbo blower effectively integrates air bearings suitable for high-speed rotation, inverters for variable speed, PLC, protection of components, and enclosure technology for noise reduction of compressors.
The high-efficiency design enables reducing power costs by 20 ~ 40% compared to conventional blowers, with air bearing and air-cooled application.
As an environmentally friendly product, with no lubrication system and almost no noise and vibration, this product improves the working environment of operators.
Adopting an air-foil bearing with no lubricant at all, this turbo blower does not need bearing exchanging work or periodic lubricating oil supply – only requiring the inlet filter to be cleaned and changed.
With its compact design, comparatively more lightweight than other ones, this turbo blower can be a solution that solves such matters as manufacturing cost and installation space. And this product allows the operators to move and install it easily.
Reduction of motor rotation speed, pressure, and temperature & flow rate is possible by controlling room computer, constant pressure operation, load / no-load operation function. This product can be controllable up to super-load operation. Automatic control of the blower is possible through surge prevention control. This product is fitted with a high-efficiency and high-efficiency motor.
By applying high-efficiency design and high-efficiency motor of the compression section, the overall efficiency is more than 66%. As this product adopts air bearing and direct connection technology, there is no contact between devices, so there is no need for low-noise sound insulation equipment of 75 to 80 db.
This turbo blower is a centrifugal blower in which suction and discharge are continuously performed by applying a non-contact air bearing. And self-vibration of the product is at zero level.
